Mitee-Bite Fixture Clamps

NZ$68.25NZ$152.58 exc. GST

Mitee-Bite Fixture Clamps deliver a low profile cam action workholding system for quick and easy installation for linear motion guide rails. Mitee-Bite Fixture Clamps represent excellent workholding flexibility and value. See Description tab below for product dimensions.

Clear
SKU: N/A Category:

Description

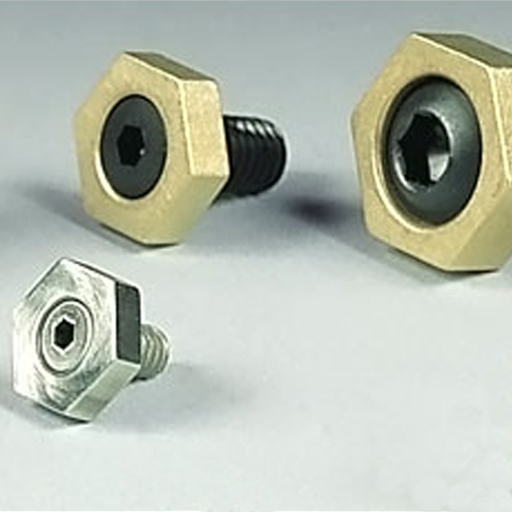

ChipX are pleased to be able to offer New Zealand manufacturers access to the iconic Mitee-Bite Fixture Clamps. Available in both metric and imperial standards, the cam action Fixture Clamp is made up of two simple components:

  1. A hardened steel socket cap screw with an offset head
  2. A brass hexagonal washer.

Mitee-Bite Fixture Clamp notable features

  • Low profile for quick and easy installation for linear motion guide rails
  • Cam action provides fast and strong clamping
  • Small overall size increasing part density per cycle
  • Simple design keeps cost low

NOTE: Clockwise rotation is recommended. Locating pin should be on the right of workpiece.

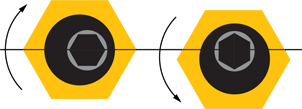

Mitee-Bite Fixture Clamps Diagram

Mitee-Bite Fixture Clamps Dimensions

Click on the Part number in the table below to download the CAD model.

Metric Mitee-Bite Fixture Clamps

Part No. A B C D E F G* Max.
Torque
(N.M.)
Max.
Holding
Force(N)
Clamps
per Pack
Spare
Cam Screw
Spare
Hex Washer
Brass
50204 M 4 3 .76 7.93 2.80 9.6 3.80 2.0 910 10 50363 10580
50206 M 6 4 1.01 15.86 4.75 11.2 7.80 8.5 3558 10 50365 10582
50208 M 8 5 1.01 20.61 4.55 15.0 10.15 11.3 3558 12 50367 10584
50210 M10 7 1.27 20.61 6.35 19.0 10.15 28.0 8895 10 50369 10586
50212 M12 8 2.03 25.38 9.52 22.8 12.70 88.0 17790 8 50371 10590
50216 M16 12 2.54 30.13 12.70 28.5 15.00 125.0 26680 4 50373 10592
Stainless Steel
50214 M4 3 .76 7.93 2.80 9.6 3.80 2.0 910 4 50361 10581
50205 M6 4 1.01 15.86 4.75 11.2 7.80 8.50 3558 4 50364 10583
50207 M8 5 1.01 20.6 6.35 15.0 10.15 11.30 3558 4 50366 10585

Imperial Mitee-Bite Fixture Clamps

Contact us if you want to order any of these Imperial fixture clamps.

Part No. A B C D E F G* Max.
Torque
(ft/lbs)
Holding
Force(lbs.)
Clamps
per Pack
Spare
Cam Screw
Spare
Hex Washer
Brass
10202 8–32 5/64 .030 .312 .110 .350 .150 1.5 205 10 10363 10580
10207 10–32 3/32 .040 .500 .160 .340 .250 2.5 350 10 10366 10587
10204 1/4–20 1/8 .040 .625 .190 .470 .308 6.2 800 10 10365 10582
10205 5/16–24 3/16 .040 .812 .180 .460 .400 8.3 800 12 10369 10584
10201 5/16–18 3/16 .040 .812 .180 .460 .400 8.3 800 12 10367 10584
10206 3/8–16 3/16 .050 .812 .250 .710 .400 20.8 2000 10 10371 10586
10208 1/2–13 5/16 .100 1.000 .375 .900 .500 65.0 4000 8 10373 10588
10210 5/8–11 3/8 .100 1.187 .500 1.125 .590 100.0 6000 10 10375 10592
Stainless Steel
10214 8–32 5/64 .030 .312 .110 .350 .150 1.5 205 4 10362 10581
10203 1/4–20 1/8 .040 .625 .190 .470 .308 6.2 800 4 10364 10583
10213 5/16–18 3/16 .040 .812 .250 .460 .400 8.3 800 4 10368 10585
