Mitee-Bite Side-Loc Xpansion Clamps

NZ$179.89NZ$242.14 exc. GST

Do you have a blind hole workholding requirement? The Mitee-Bite Side-Loc Xpansion Clamp has you covered by actuating from the side. Choose from either the mill or lathe version.

Clear
SKU: N/A Category:

Description

So you have a blind hole application? The Mitee-Bite Side-Loc Xpansion Clamp has you covered by actuating from the side. It’s produced for both mill and lathe applications. A cam shaft and plunger expands the clamp from the side all with the same mounting dimensions as the original ID clamp.

The Side-Loc Xpansion Clamp is actuated by turning a socket head cam shaft on the side, which moves a tapered plunger to expand the clamp. The locking ring provides an accurate preset diameter and rigidity for machining to a custom diameter or profile. Do not exceed the maximum torque of 13 N.m. on the locking ring.

Like the original ID Xpansion™ clamps, the Side-Loc Xpansion Clamp has the dead length feature which is critical for close tolerance dimensions.

Mitee-Bite Side-Loc Xpansion

CAD / Model #

A

B

C

D

E+.000-.005

F

G†

H

Holding Force (N.)

Mill #3 41.3 22.2 17.5 19.0 50.0 28.7 17.8 M4 on

39.4 BHC

20,000
Lathe #6 44.4 25.4 21.3 19.0 N/A 53.3 17.8 25 20,000

G† – Minimum Diameter the F dimension can be machined down to.
Max Torque 66 N.m.

The Side-Loc Xpansion Clamp comes in two styles: one for milling operations and one for lathe applications. One size is available for each model. The mill Side-Loc Xpansion Clamp can be machined from 28.4 to 18mm and the lathe version from 53 to 18mm. The lathe version has a 25mm straight shank.

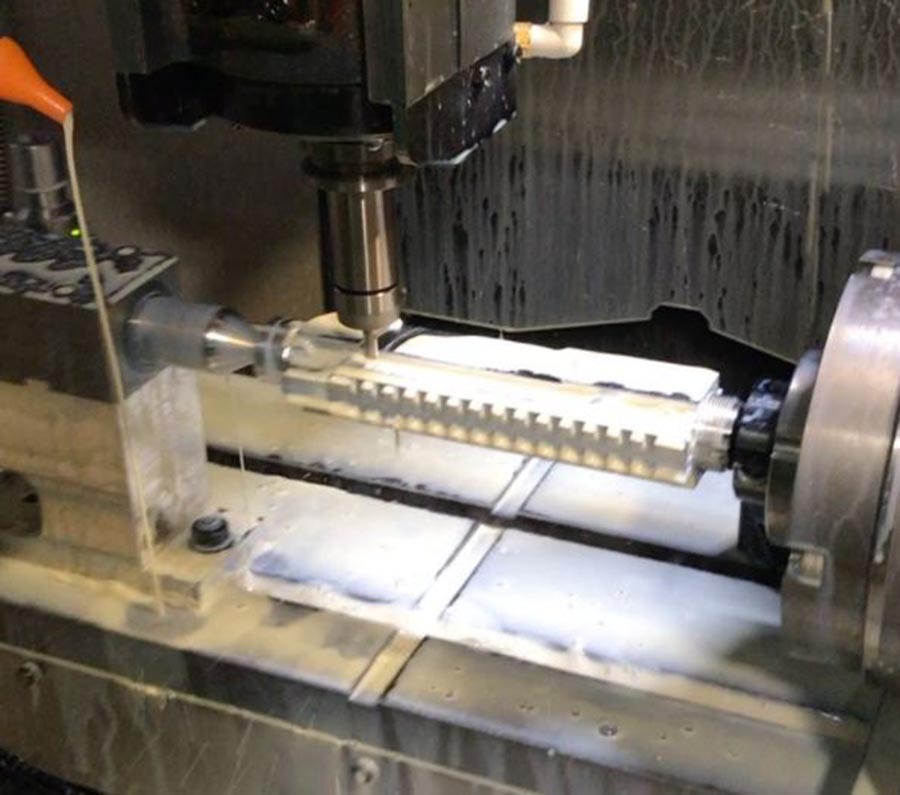

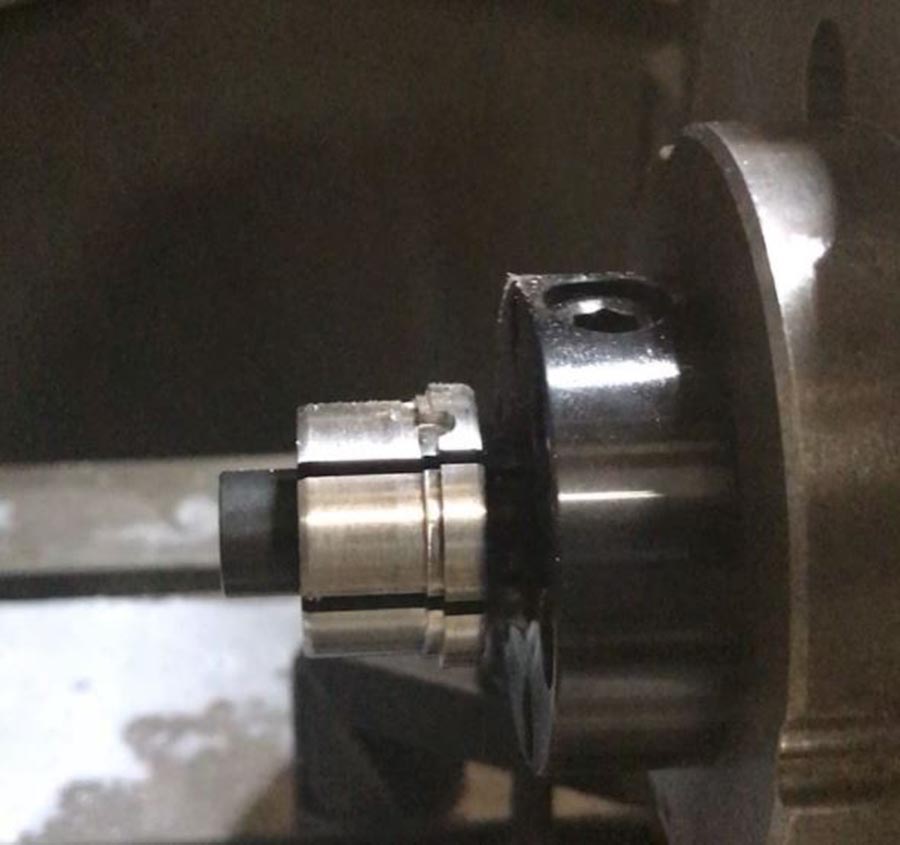

Mitee-Bite Side-Loc Xpansion Clamp application examples

Mitee-Bite Side-Loc Xpansion Clamp

Mitee-Bite Side-Loc Xpansion Clamp

Mitee-Bite Side-Loc Xpansion Clamp
